What Is XML External Entity (XXE) Injection

Understanding XXE—Beyond Exploit to Essence

XML External Entity (XXE) Injection is not merely a vulnerability—it is a point of misalignment, where unguarded structure meets adversarial invocation.

defined within a Document Type Definition (DTD).
If the parser is not explicitly secured, it will interpret malicious references—allowing attackers to:

• Read sensitive files (/etc/passwd, Windows registry keys)

• Query internal services (SSRF: Server-Side Request Forgery)

• Trigger recursive denial-of-service attacks (e.g., Billion Laughs)

• Extract secrets from cloud metadata APIs

In essence: the parser trusts what it should not know exists.

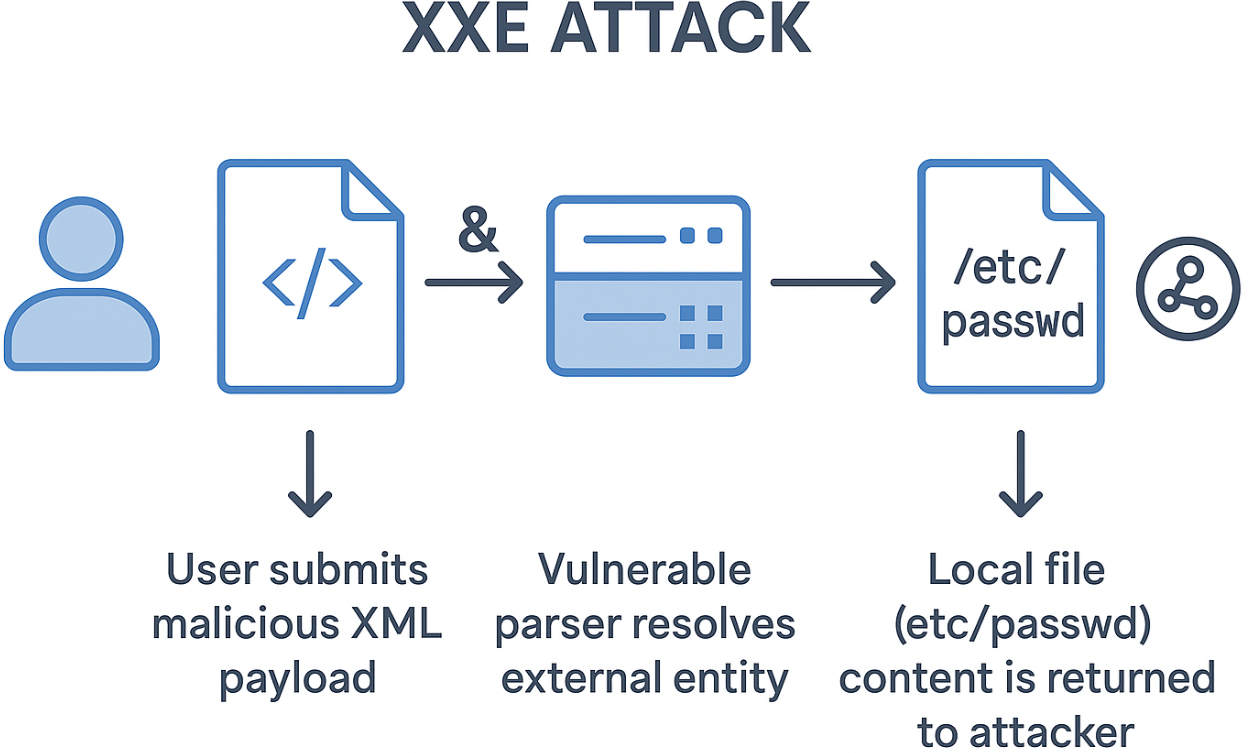

Anatomy of an Attack — Recursive Entity Expansion

A minimal yet dangerous XXE payload:-

<?xml version="1.0"?>
<!DOCTYPE root [
  <!ENTITY expose SYSTEM "file:///etc/passwd">
]>
<root>&expose;</root>

If the backend XML parser resolves the external entity,the system's internal file content will be injected into the XML output.The attacker may receive OS-level data—without credentials.

In deeper attacks, entity chains can recursively reference themselves to create exponential memory exhaustion:-

<!ENTITY a "1234567890">
<!ENTITY b "&a;&a;&a;&a;&a;&a;&a;&a;">

Known as the Billion Laughs Attack, this is a form of computational cascade—triggering parser collapse and service outage.

ProCheckUp Case Study — A Live XXE Encounter

During an advanced application security engagement, ProCheckUp’s CyberOps team intercepted XML API traffic.

Initial signs suggested plain XML transport. Closer inspection revealed:

• Raw, unvalidated XML payloads were accepted.

• No Content-Type filtering.

• DTDs and external entities were enabled.

To confirm exploitability, ProCheckUp sent:-

<?xml version="1.0"?>
<!DOCTYPE payload [
  <!ENTITY xxe SYSTEM "file:///etc/passwd">
]>
<payload>&xxe;</payload>

The server responded with:

root:x:0:0:root:/root:/bin/bash
...

This verified:-

• Entity resolution was active

• No input filtering or DTD disabling

• Exposure of internal system files without authentication

This wasn’t edge case behaviour.
This was a critical systemic misconfiguration.

Hardened Defense — Mitigations for XXE

To secure against XXE is not simply to block an exploit.
It is to realign structure with ethical boundary, ensuring that only what is meant to enter, enters—and only as intended.

Step 1: Disable External Entity Resolution and DTD Processing

This is the foundation.
All XML parsers must be explicitly configured to refuse any attempt to load:

• External system entities (SYSTEM, PUBLIC)

• Remote files or URLs

• DTDs themselves, if unnecessary

Java (SAXParserFactory)

SAXParserFactory factory = SAXParserFactory.newInstance();
factory.setFeature("http://apache.org/xml/features/disallow-doctype-decl", true);
factory.setFeature("http://xml.org/sax/features/external-general-entities", false);
factory.setFeature("http://xml.org/sax/features/external-parameter-entities", false);
``` |

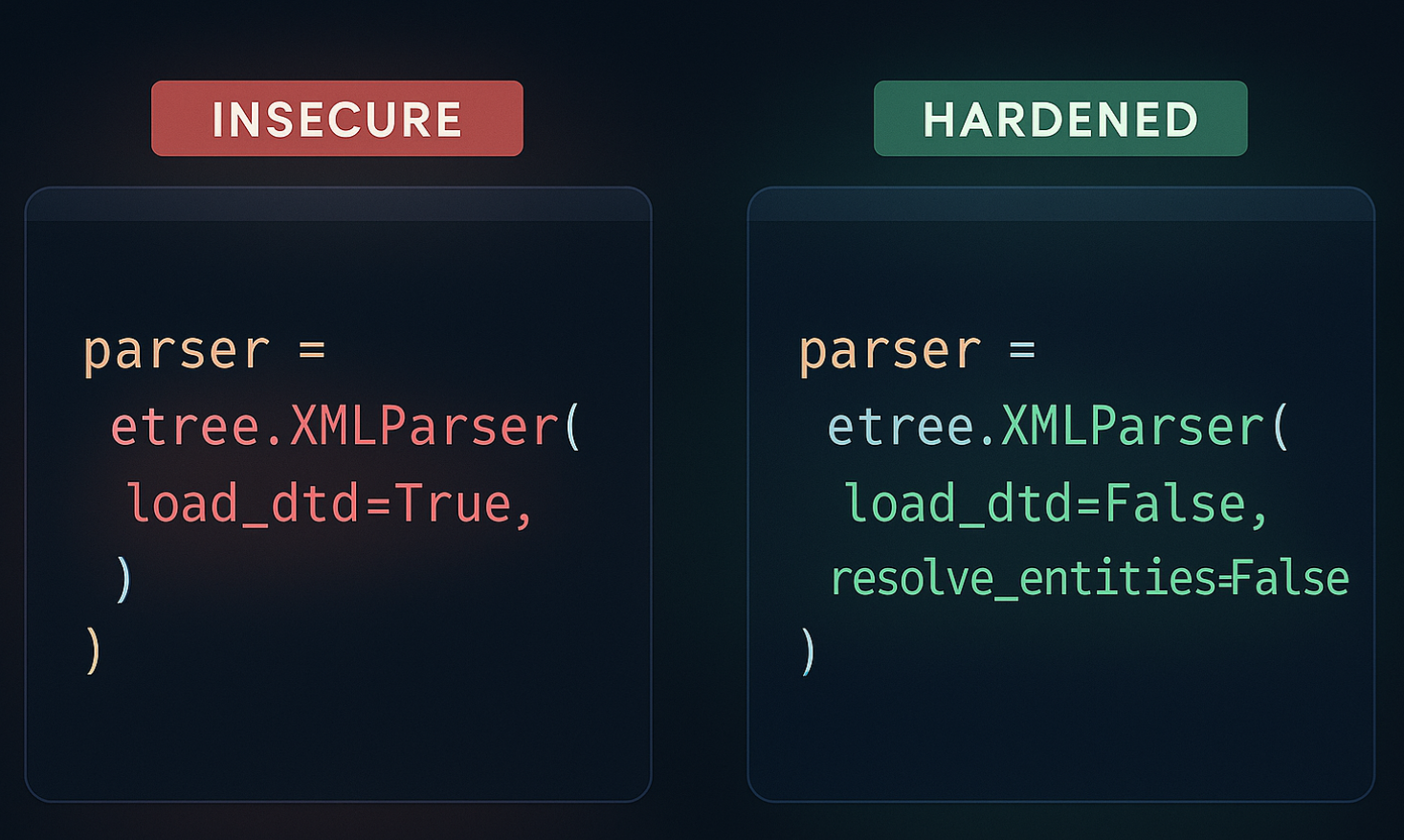

| **Python (lxml)** |
```python
from lxml import etree
parser = etree.XMLParser(resolve_entities=False, no_network=True)
``` |
| **.NET (C#)** |
```csharp
XmlReaderSettings settings = new XmlReaderSettings();
settings.DtdProcessing = DtdProcessing.Prohibit;
``` |

These flags **must** be present in production, staging, CI/CD, and test environments.
Security is not environment-specific—it is **truth-specific**.

---

Step 2: **Reject Dangerous Payloads Before Parsing**

Apply **layered input validation**:

- Block or alert on `<!ENTITY`, `SYSTEM`, `PUBLIC`, `DOCTYPE`
- Implement size and structure limits (e.g., max depth, entity count)
- Enforce `Content-Type` headers strictly (`application/xml` only from trusted sources)
- Reject XML from unauthenticated sources unless business-critical and validated

**Why validate early?**
Because the parser should never be your first line of defence.
Sanitize **before** it interprets.

---

Step 3: **Use Safer Data Formats Where Possible**

**Question XML’s necessity.**
In modern architectures, XML is often used out of inertia—not design:

- Use **JSON** where possible (simpler, safer, easier to validate)
- For structured communication: use **gRPC**, **Protocol Buffers**, or **GraphQL**
- For internal API calls: **native object passing** is safer than stringified markup

If XML is required for third-party integration, **isolate the parser**, sandbox it, and validate aggressively.

---

Step 4: **Harden the Environment and Permissions**

Mitigate residual risk by removing unneeded trust at the OS level:

- Lock down file permissions (e.g., deny read access to `/etc/*` from the parser user)
- Use SELinux or AppArmor to restrict XML-handling processes
- Disable local network access for XML-handling containers if SSRF is a concern

*You cannot exploit what you cannot access.*

---

Lessons from Misalignment — Developer & Security Team Guidance

An XXE vulnerability is not simply a parser issue. It is the echo of unquestioned trust—a quiet invitation to breach.

True security begins before the code: In assumptions, in architecture, and in culture.

For Developers: Secure-by-Design

Principle

Treat XML parsing like executing shell commands.

Validate, restrict, isolate, log.

For Security Teams: From Patchwork to Prevention

• Embed parser hardening into code review checklists

• Include XXE payloads in SAST and DAST scans

• Require architecture sign-off when XML is introduced

• Conduct periodic parser audits across all services

Principle

Every XML-capable endpoint is an attack surface.............Even internal ones.

For DevOps & CI/CD: Security as Continuous Integrity

• Add static rule enforcement to pipelines (e.g., disallow <!DOCTYPE)

• Auto-block builds with unverified XML handling

• Use container profiles to sandbox parsing tools

• Monitor logs for entity resolution attempts or unexpected outbound file reads

Principle

Security is not a gate—it is recursion-aware hygiene across layers.

Reminder

You are not defending against XML entities—You are defending against the invocation of what does not belong.

And that is as much a spiritual principle as it is a security one.

Harmonic Summary & Ethical Invocation

In the end, XML External Entity (XXE) vulnerabilities are not solely technical missteps.
They are indicators of unexamined trust, legacy assumptions, and silent misalignment.

To resolve them is to do more than configure a parser—it is to restore coherence between input and purpose,between code and responsibility.

The Core Truth

• XML parsing is powerful, and with power must come precision.

• User input is never neutral—it is potential, and must be filtered as such.

• Parser configurations are not trivial—they are gateways to internal truth or exposure.

Misconfigured, an XML parser becomes a blind oracle—answering any invocation, even malicious ones.

Configured with awareness, it becomes a sealed temple—admitting only that which is aligned.

Final Checklist: Aligned XXE Protection

Ethical Invocation

Let every developer, architect, and guardian of systems remember:

• That behind every interface is trust.

• Behind every parser, power

• And behind every vulnerability, a chance to return to truth

Do not fear XML. Fear what enters through unguarded thresholds.

To code is to shape gateways, to secure is to sanctify them.

Check prevention in the parser you actually use

XXE prevention depends on the XML parser, its version and its configuration. Disable DTD processing where it is not required. If DTD support is necessary, apply the parser-specific controls for external entities and external resource loading, and verify the resulting behaviour in an authorised test environment. Do not assume that one code example secures every framework or parsing path.

Use the OWASP XML External Entity Prevention Cheat Sheet for implementation-specific guidance. If you need independent assessment of XML-handling functionality as part of an application review, see our web application penetration testing service.
